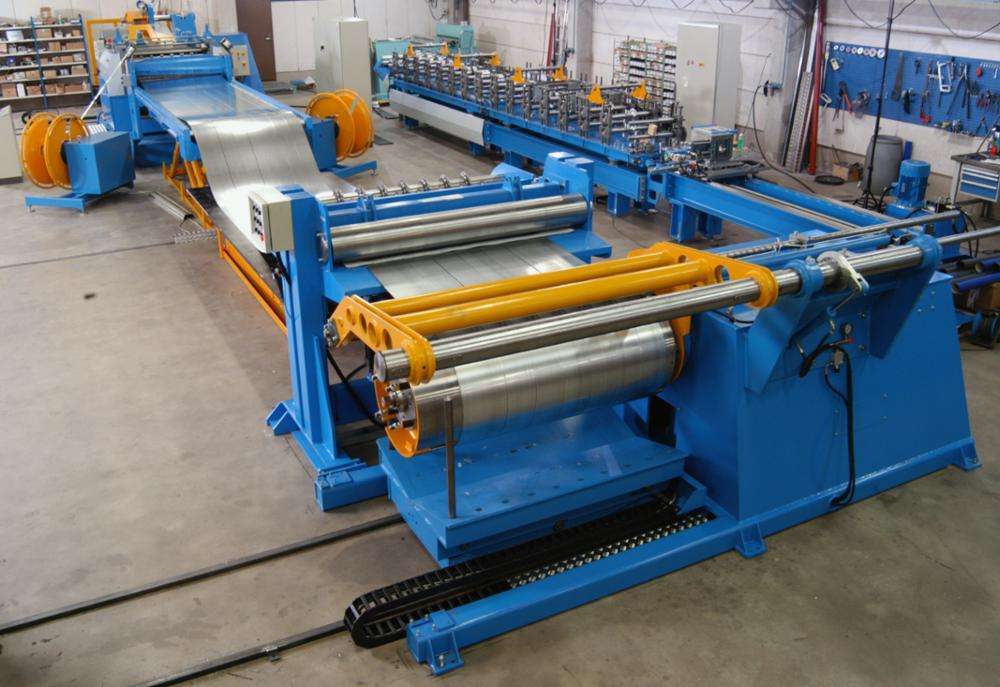

Hydraulic de-coiler with car It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped with the cantilever. inner diameter: 508mm . The Max width:1500mm The capacity is 15Tons (max) |
|

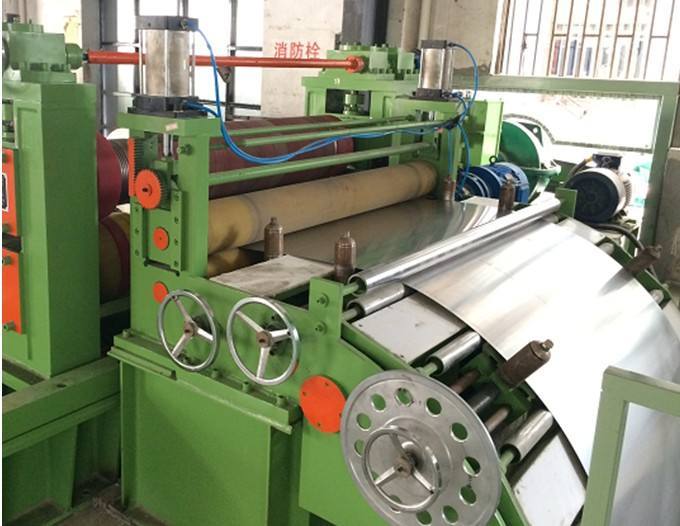

pre-leveling machine It can straighten the rough plate and guide strip right after entering the process Mechanical structure: it is composed of two rows leveling roller, two rows middle supporting roller, 2 groups of supporting rollers, driving device, 2 pinch rollers and frame. Each roller both of ends drive with roller pin bearing, the working rollers can be adjusted the gap electrically which is controlled by 2 hand wheels to ensure the leveling quality. Driving model: driven by 55kw frequency control motor Roll process:hardened HRC55-60 -finishing grinding- hard chromium plating Automatic lubrication system |
|
Servo precision straightening machine It is controlled by servo electromotor and used to regulate for high speed feed and precise length control. The operation is done at the control table with programmable control. Drive model: 15 KW servo motor |
|

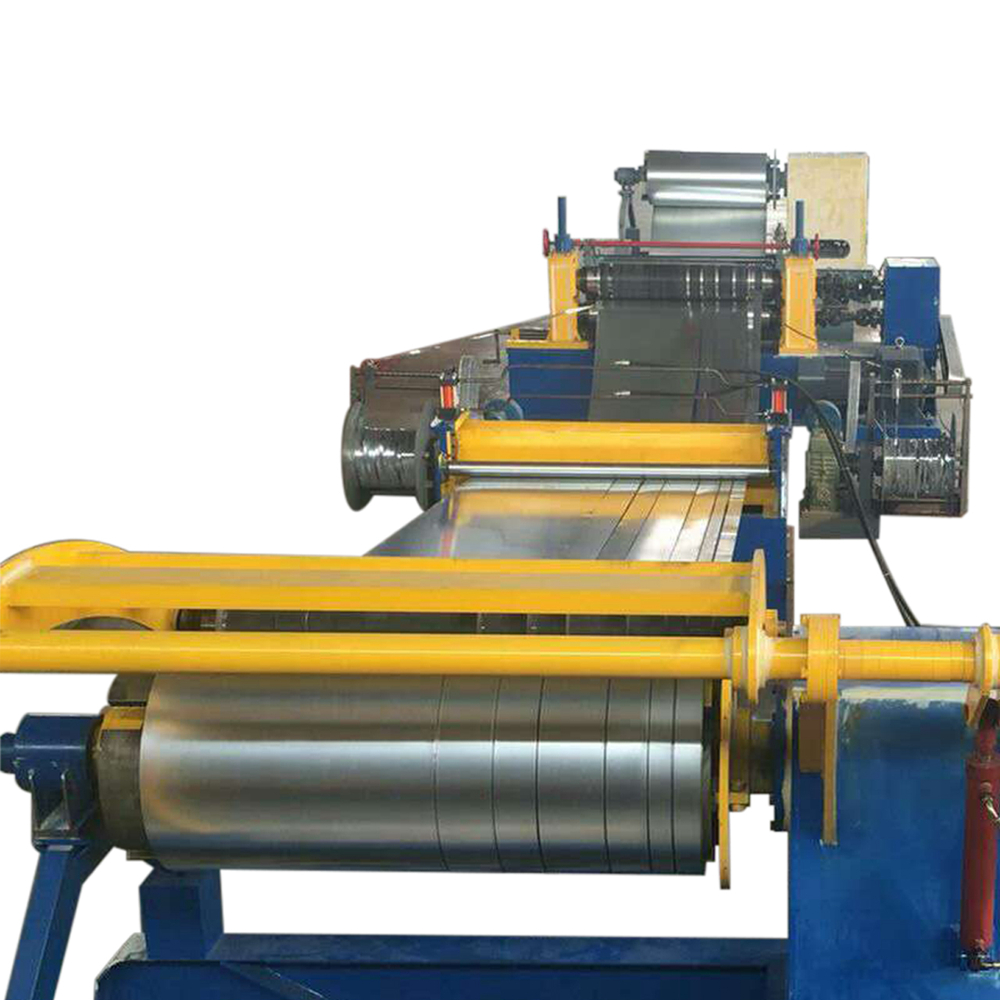

High speed Cutter 1). The width range :200--1300mm 2). The precious of the width:±1mm 3). The speed of slitting:50m/min 4). The width can be change. 5). Material of the slitting: Cr12MoV. Hardness of slitting blade:HRC5860. 6).slitting:2~3mm 6 lines. 7).quantity of blades:10 sets . 8).Width of side scrap:3-15mm 9).The precious of side scrap:±0.5mm 10).Quantity of side scrap:2 strips 11).Power of the slitting:37KW,1000r/min,with ZQ750 Reducer. |
|
Pneumatic stacker device The plates are piled pneumatically and PLC controls the lifting. Three 0.75kw motors drag to adjust the width and the length. It is equipped with the wind device which cooperates with the high pressure fan to prevent the sheets from friction. stress of air source: 0.4-0.6Mpa. The capacity:1m³ /min. |
|
Electrical system 1). Screen:3.2inch button screen 2). PLC:Delta |
